More Information
| Brands | orange |
|---|---|
| In stock | No |
| Amplifier Type | Tube |
| Power (Watts) | 30W |

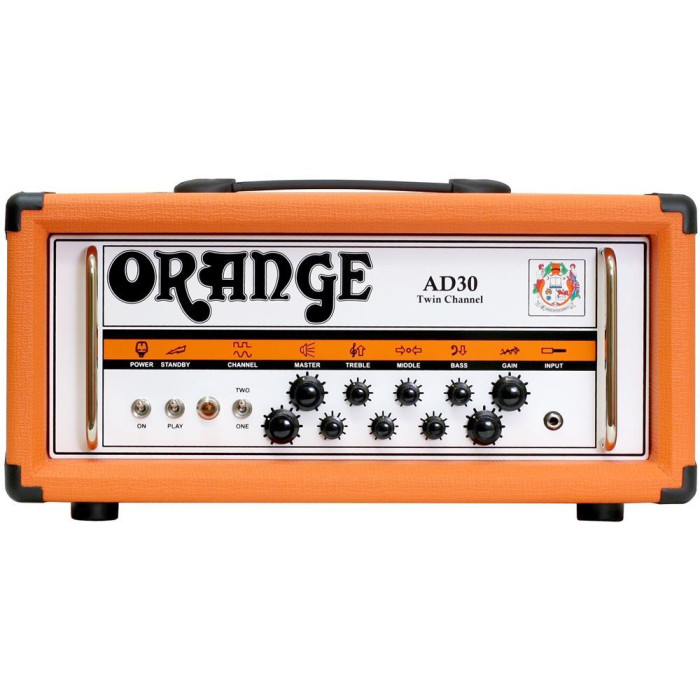

Description / ORANGE AD 30 Watt Twin Channel Class A Vintage EL84 Guitar Head
The AD30HTC sports two dual stage channels with completely separate signal paths. The result is two vintage amps in one. Channel One has a thick, creamy, classic voice that barks like a rottweiler when pushed in to the tone zone. Channel Two has a tighter, springy and slightly faster character with a little more upper mids and a bit more gain. This amp has proved to be so popular worldwide that its specification remains unchanged. It is fast becoming the new world standard for 30 watt Class A valve amplifiers.
Features:
-All valve, foot switchable two channel, valve rectifier,
Controls
-Master, treble, middle, bass and gain for channel 1 & channel 2
Output Power (Heads and Combos)
-30 Watts
Power Handling (Cabinets)
-NA
Valves (Heads and Combos)
-Preamp: 4 x Ecc83/12ax7
-Power amp: 4 x EL84
-Rectifier: GZ34
Speaker Output Options (Heads)
-1 x 16 Ohm cabinet connected to the 16 Ohm output
-1 x 8 Ohm cabinet connected to one of the 8 Ohm outputs
-2 x 16 Ohm cabinets each connected to one of the 8 Ohm outputs
Speakers (Combos and Cabinets)
-NA
Impedance (Cabinets)
-NA
Extension Cabinet Options (Combos)
-NA
Unboxed Dimensions
H (cm) 27
H (in) 10.63
W (cm) 55
W (in) 21.65
D (cm) 24
D (in) 9.45
Unboxed Weight
16.5 KG
36.4 lb
ORANGE AD 30 Watt Twin Channel Class A Vintage EL84 Guitar Head
- SKU:
As low as:
$2,649.00
As low as:
Available on order - Delay may vary, contact us for more details
The AD30HTC is a popular all-valve, foot switchable two-channel amplifier with a vintage sound. It features two dual-stage channels with separate signal paths, resulting in two distinct voices. Channel One has a classic, creamy tone, while Channel Two is tighter and faster with more upper mids and gain. The amp has a 30-watt output power and uses four Ecc83/12ax7 preamp valves, four EL84 power amp valves, and a GZ34 rectifier. It has various speaker output options and weighs 16.5 kg. The AD30HTC has become a world standard for 30-watt Class A valve amplifiers and remains unchanged in its specifications.
